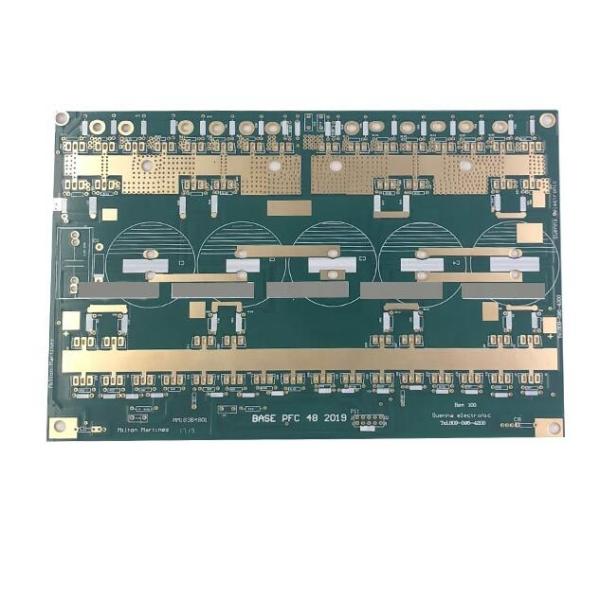

Heavy Copper 4oz 140um PCB 4 Layer 2.0mm Green Soldermask ENIG
Linked Electronics Co., Limited is a PCB prototype manufacture in China.
For PCB copper thickness 1oz=35um. There is no conclusion about the definition of heavy copper PCBs in IPC standard. And at Linked, for PCB copper thickness which is more than 2oz=70um is heavy copper PCBs. These heavy copper PCBs are used for large (high) current outputs and for optimization of the thermal management. The thick copper allows large PCB-cross-sections for high current loads and encourages heat dissipation. The most common designs are multilayer or double-sided. With this PCB technology it is also possible to combine fine layout structures on the outer layers and thick copper layers in the inner layers.
And heavy copper electronic PCB board produced by Linked Electronics are widely used in the following products, such as solar power converters, torque controls, UPS systems, safety and signal systems
rail traction systems ,power line monitors, protection relays, HVAC systems, storage pumping plants and overload relays.
If you have any heavy copper request, contact our team and we are happy to quote your heavy copper PCB RFQs.
Quick Details
1• Place of Origin: Shenzhen, China (Mainland)
2• Brand Name: Linked Electronics
3• Number of Layers: 4 Layer Heavy Copper PCB
4• Base Material: FR4
5• Copper Thickness: 4 OZ
6• Board Thickness: 2.0mm
7• Min. Hole Size: 0.5mm
8• Min. Line Width: 13mil
9• Min. Line Spacing: 20mil
10• Surface Finishing: ENIG
11• Testing Service: AOI,E-testing,Fly-Probe-Testing
12• Solder mask color:Green
Our main service:
1. PCB manufacturing from 1 to 32 layers;
2. Component sourcing;
3. PCB Assembly;
4. PCB/ PCBA Test.
PCB Product Detail
| Product Name | 4 Layer Heavy Copper PCB produced by Linked Electronics |
| PCB Spec | 2.0mm, 4oz, green soldermask, white legend, ENIG |
| Lead Time | 10 days |
| Manfuacturing Standard | IPC Class 2, IPC Class 3 standard |
| Test Method | AOI, Flying Probe Test |
Quality Assurance of the PCBs Produced by Linked Electronics
1. Linked Electronics has a very strict quality inspection systems, which follows the IPC Class 2 standard or IPC Class 3 standard
2. All PCBs are 100% e-tested by AOI and flying probe or fixture
3. Besides e-test, there is other test, such as thermal stress, microsection, solderability test and so on.
And our FQC team will carry 100% visual test to found out any possible PCB issues such as board warp and twist, offsite of soldermask, board thickness tolerance etc.
4. At Linked Electronics, we have constant quality standard which help us to win a lot of customers around the world.
